High-Capacity Continuous
Pulsed Electric Field System
for Large-Calibre Crop Processing
The C 2000-600 Chain System is our most powerful and highest‑capacity continuous PEF treatment platform, capable of processing up to 150 t/h of the largest tubers and bulkiest fruit bunches.
Built for big volumes, big challenges, big‑scale processing - and greater PEF product opportunity.
The Elea PEF Advantage C 2000-600 Chain System is what we believe to be the world’s largest PEF system ever built. With a massive 600 × 600 mm treatment channel, it can process oversized tubers, bulky root crops, and high-density product streams at an industrial scale. The system currently delivers a standard throughput of 150 t/h for sugar beet, sweet potatoes, and potatoes, with higher‑capacity configurations becoming available through the integration of additional power modules. This unparalleled size, combined with robust chain-driven transport and high-capacity pulse generation, sets a new global benchmark for throughput, flexibility, and performance in PEF technology.
Its scale and design make it uniquely suited for demanding outdoor environments and continuous high-volume production, delivering reliability and efficiency that no other system in the world can match.

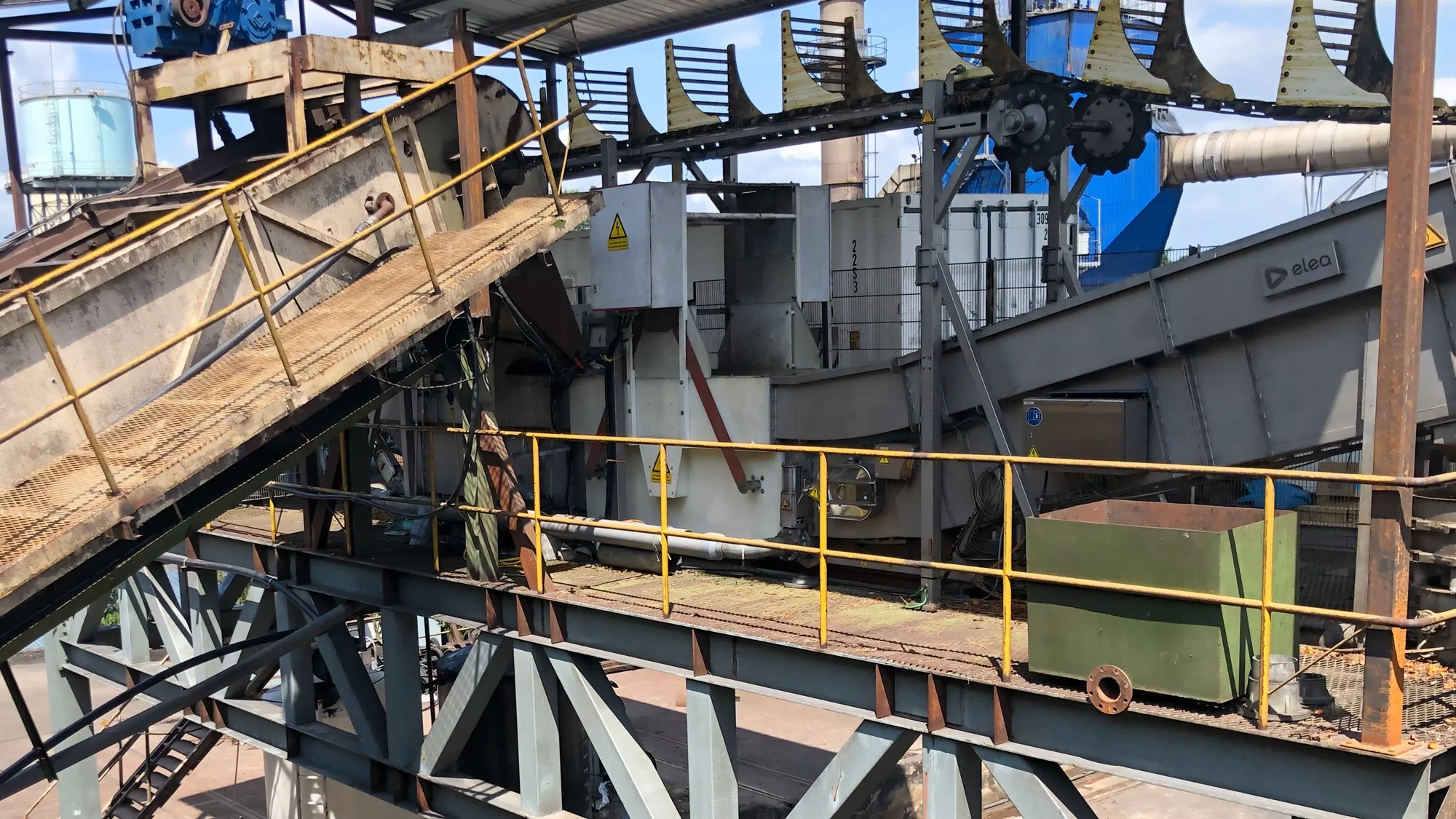

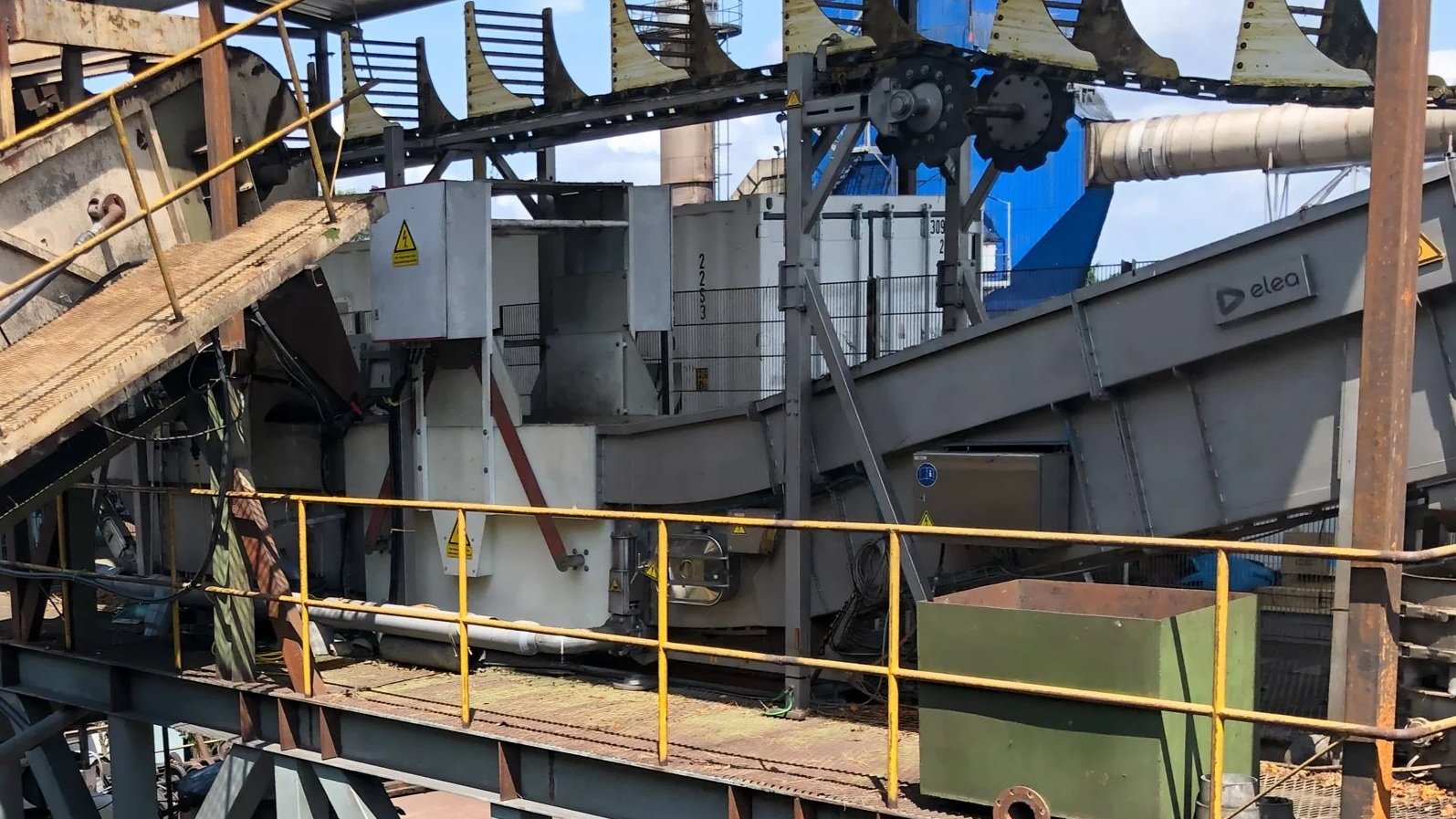

Designed for tough environments - the first PEF system built for true outdoor use.
Its outdoor‑ready design opens new possibilities for production lines short on indoor space, making it easier than ever to integrate PEF where it was previously impossible. Its scale and engineering make it uniquely suited for demanding conditions and continuous high‑volume processing, delivering reliability and efficiency unmatched by any other system.
The new C 2000-600 Chain System stands as another outstanding example of Elea and DIL Engineering’s PEF design excellence, combining industrial robustness with advanced process performance.
For the first time, PEF for the
largest raw materials
For over 12 years, Elea PEF has been a trusted standard in potato chip and French fry production worldwide. With our latest system, that capability goes even further — bringing efficient, high‑volume PEF processing of potatoes and vegetables to a massive scale, and now even making outdoor operation possible.
Now Elea PEF technology reaches the scale needed to treat even the biggest and toughest products.
PEF bulkier products for the first time!
Cleaner cutting
Higher throughput
Reduced waste
Greater value
PEF bulkier products for the first time! Cleaner cutting Higher throughput Reduced waste Greater value
Big capacity, small produce — also perfect for high‑density, high‑throughput potato and vegetable processing.
PEF improves extraction efficiency for sugar beet and sugar cane by opening cell structures, enhancing mass transfer and reducing energy use, helping processors achieve higher yields with smoother downstream handling. It also makes dense, bulky crops like pumpkins, squashes and sugar cane easier to process — softening tough structures for cleaner cutting, higher throughput and reduced waste, while creating new opportunities for value‑added products.
The Elea PEF Advantage C 2000-600 Chain system is engineered for maximum throughput up to 150 t/h and indoor & outdoor use
Pulse Generator
-
At the heart of the C 2000-600 Chain System is a high-performance 60 kV solid-state matrix pulse generator, engineered for industrial-scale Pulsed Electric Field processing.
The system ensures highly efficient energy transfer and consistent treatment results — even at maximum throughput.
Scalable power levels allow precise adaptation to different product types, packing densities and process objectives, providing flexibility for diverse production requirements.
-
The generator is supplied in a standardized, container-sized configuration with IP55-rated coated steel construction suitable for outdoor positioning.
A water-cooled system with internal air cooling — or optional closed-circuit container cooling — guarantees stable operation under demanding environmental conditions.
Its modular architecture enables quick replacement of individual stages, reducing downtime and maximizing operational availability, while the Siemens S7 PLC control platform ensures full transparency through real-time monitoring of voltage, current, temperature and conductivity.

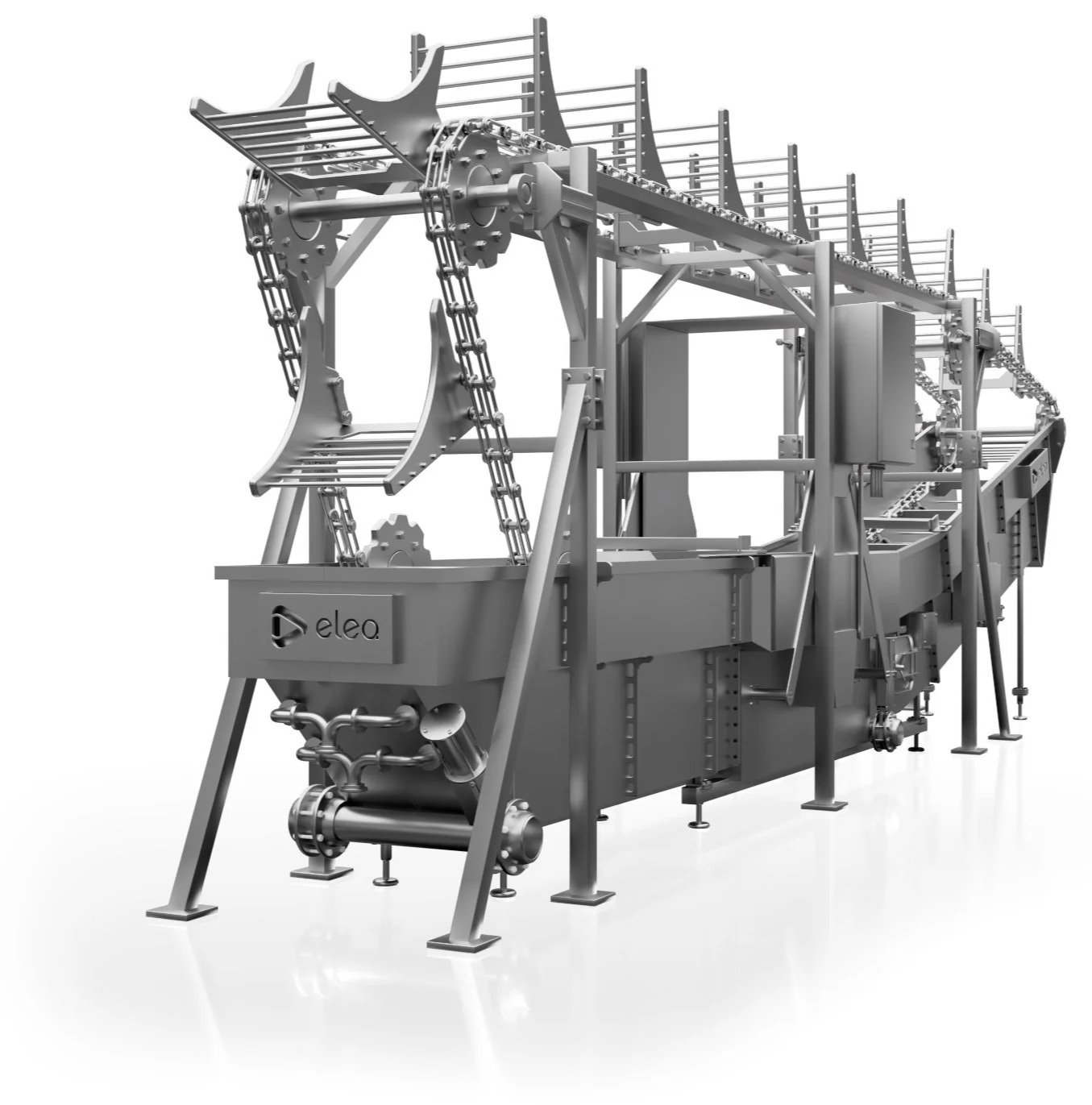

Continuous PEF Chain System
-

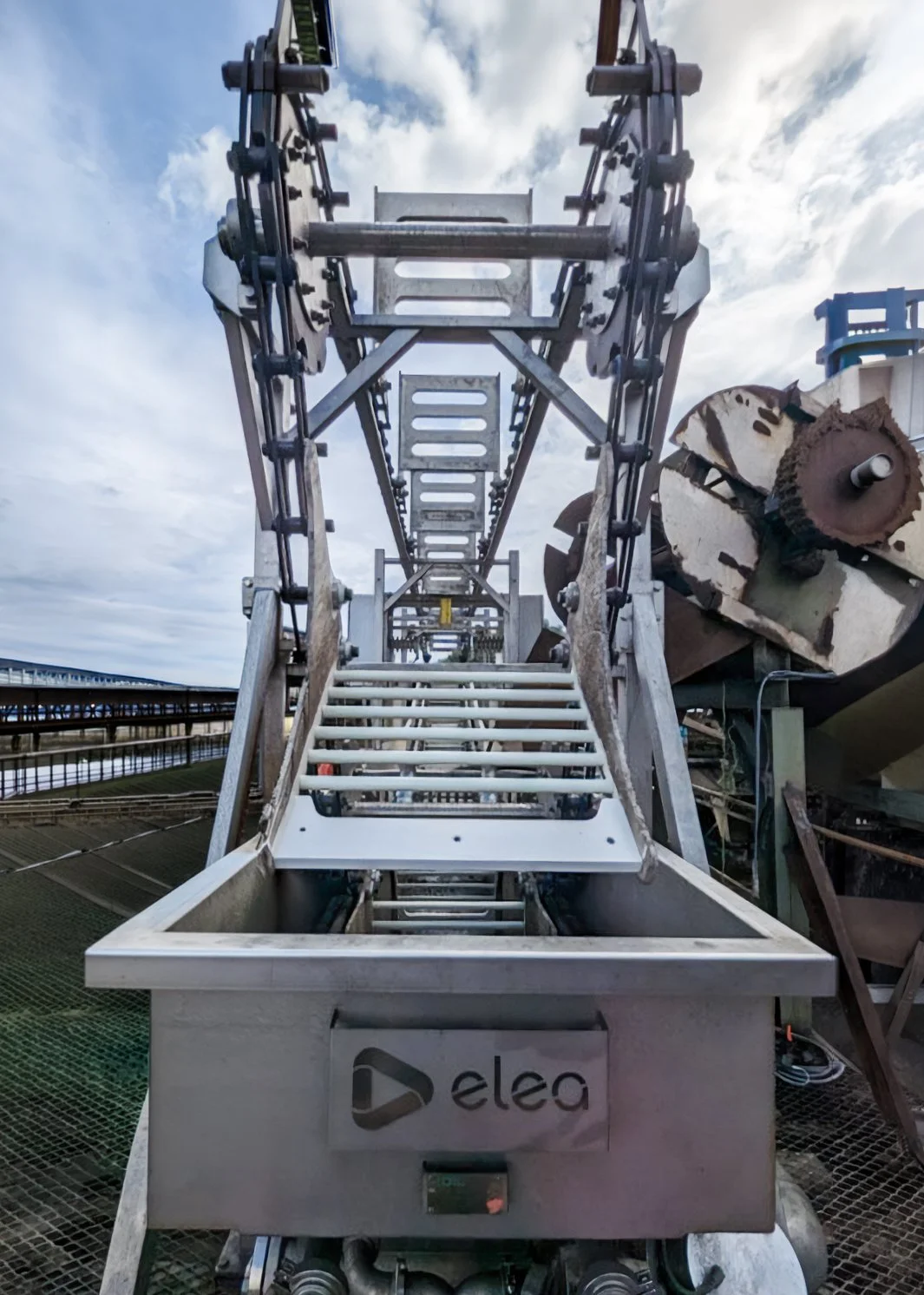

The chain-driven transport system is specifically engineered for stable handling of large tubers and bulky fruit bunches in a continuous product/water mixture.
Its robust construction ensures controlled movement at high packing densities, enabling reliable processing at industrial throughputs of up to 150 t/h (crop dependent) with higher‑capacity configurations becoming available through the integration of additional power modules.
-
The 600 × 600 mm treatment area features a hygienic, open construction with minimized dead zones for fast cleaning and reduced downtime.
The treatment tank and flume are optimised for uniform PEF exposure, reduced water volume, and fast cleaning. Integrated sediment removal ensures that residual solids do not disrupt product flow or treatment quality, maintaining smooth operation and long-term reliability.
Automatic water level and conductivity control further support stable, efficient processing, whether installed indoors or in challenging outdoor environments.
The Elea PEF Advantage C 2000-600
Built for your production line
24/7 operation
The robust chain design and high-capacity solid-state matrix generator ensure that the C 2000-600 Chain System is exceptionally reliable, allowing for continuous 24/7 operation with minimal maintenance. Built to withstand demanding industrial conditions, the system delivers maximum throughput and consistent treatment performance for large-scale crop processing.
As part of our service offerings, Elea provides around-the-clock technical support, ensuring that your system remains operational and any issues are quickly addressed to minimise downtime.
Fully Customisable
The C 2000-600 Chain System is fully customisable to meet the specific requirements of your processing line. From chain layout and treatment tank design to control software and operational parameters, every aspect can be tailored to your product type, packing density, and throughput goals.
Our engineering team works closely with clients to design solutions for unique challenges — whether that means adjusting chain speed, tank configuration, or treatment parameters, the system can be adapted for optimal performance.
Total Control
The C 2000-600 Chain System is designed to integrate seamlessly with any standard industrial processing control system and is fully certified for installation worldwide.
We work closely with our clients to ensure they are using the full potential of their PEF system. By tailoring treatment parameters to the specific crop, product size, and processing goals, we help maximise efficiency, yield, and quality — giving you complete control over your PEF process.
The Elea PEF Advantage C 2000-600
At a glance
-
600 × 600 mm treatment channel
Continuous high-capacity operation
Up to 150 t/h throughput (crop dependent) expandable with additional power modules.
High packing density capability
-
Robust chain-driven transport system
Designed for large tubers & bulky root crops
Stable product handling in water mixture
Uniform PEF treatment performance
-
Integrated sediment removal system
Optimised flume geometry
Reduced process water consumption
Automatic water level & conductivity control
Hygienic, dead-space-free tank design
-
Industrial heavy-duty construction
Stainless steel electrodes
Heavy-duty bearings for long service life
Built for indoor & outdoor installation
-
Easy access for cleaning & maintenance
Training, global support and installation
Our highly skilled technical team provide comprehensive training and a continual support service around the world, including full PEF Advantage Chain system installation and maintenance.
-
Training
Investment in training your PEF Advantage Chain system operators and maintenance engineers ensures skilled personnel who can achieve optimal system performance, throughput, and safety. Our training programs cover system operation, chain transport handling, PEF settings, and hygiene procedures.
We provide both in-house and on-site training tailored to your facility and product types, ensuring your team is fully confident in running and maintaining the C 2000-600 efficiently.
-
Global Support
Our global service network provides full support wherever your processing facility is located. Highly skilled Elea technicians can travel to your site for complete installation, commissioning, and maintenance of your C 2000-600 Chain System.
Remote monitoring and diagnostics are also available, allowing our Customer Service team to assist in real time, troubleshoot, and optimise system performance without delay. Around-the-clock support ensures your system runs at maximum uptime and reliability.
-

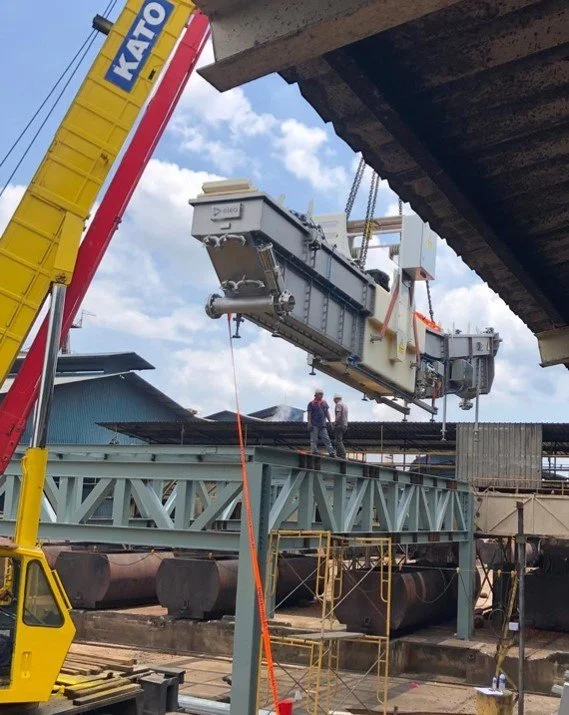

Installation & Maintenance
The C 2000-600 Chain System is delivered with full installation support by our experienced technicians, ensuring the system is correctly set up and integrated into your processing line.
We also provide ongoing maintenance services, including preventative inspections, modular component replacement, and troubleshooting. This ensures long-term operational reliability, minimal downtime, and consistent high-throughput performance for your industrial-scale PEF operations.
Frequently Asked Questions about Elea PEF Advantage Chain systems
-
No — the chain system is designed for automated continuous operation. Once configured and commissioned, it can run without a dedicated full‑time operator, using PLC control for process monitoring and alerts.
-
We recommend an annual service visit by the Elea service team to inspect calibration, electrical connections, chain condition, and generator performance. Monthly preventative maintenance checks on chain tension, bearings, and water management components are also advised to ensure optimum uptime.
-
Yes — all parts in contact with the product or process water are constructed from stainless steel or other food‑grade materials compliant with international food‑processing standards.
-
Yes — the open, dead‑space‑free chain and tank design allows rapid access for cleaning. Standard industry cleaning agents are sufficient, and frequent cleaning supports high hygiene standards.
-
Yes — the system’s Siemens PLC supports optional integration with external SCADA systems and remote maintenance access. Real-time monitoring of key process parameters can be enabled for central control.
-
Component access is service‑friendly by design. The modular generator stages and chain drive components are engineered for straightforward replacement with minimal tools or setup time.
-
Standard requirements include electricity, cooling water for the generator, process water supply, and compressed air. Detailed utility specifications vary with configuration and site conditions.
-
Yes — generator cabinets are IP55‑rated, coated steel suitable for external positioning.
Optional containerised generator units with closed‑circuit cooling are available for tropical outdoor sites, ensuring reliable operation in high humidity, heat, or dusty conditions.
Indoor factory installations are fully supported as well, with the same robust electrical and cooling performance.
-
Absolutely — the C 2000-600 is engineered for both indoor and outdoor tropical environments. Coated steel, IP55 protection, and closed-loop cooling allow stable, high-throughput operation even in extreme temperatures, humidity, or dusty factory and field conditions.
-
Yes — PEF treatment is a volumetric physical process. The chain system’s transport design maintains product orientation and exposure in the water bath so that treatment is uniform across the product stream.
Elea Cut Control, PiCon and PEF Control.
Precision PEF monitoring and optimisation tools.
Optimise and maintain your PEF treatment parameters, get the best possible result for your product.
Cut Control
Monitor quality control with precision and optimise treatment conditions for potato and vegetable cutting with Elea Cut Control.
PiCon
Inline, real-time tool that automatically adjusts PEF treatment quality during slicing. Using acoustic analysis and AI to detect PEF‑induced structural changes—ensuring consistent treatment without interrupting production.
PEF Control
PEF Control measures the impact of PEF cell disintegration and optimises mass transport processes, such as sugar extraction, drying or infusion.
